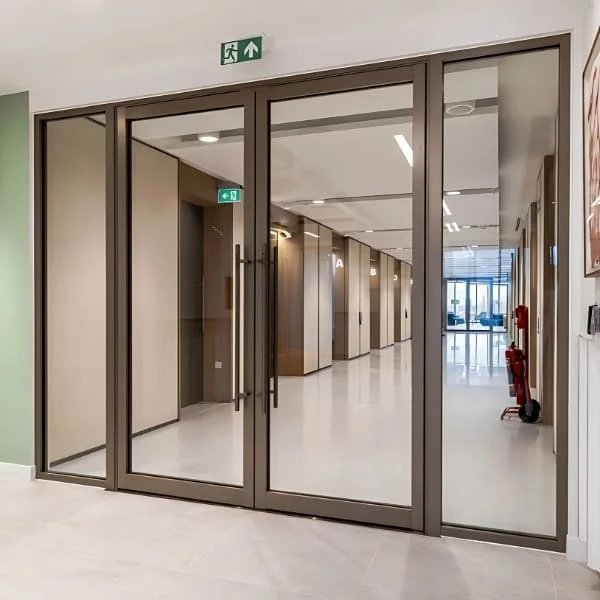

Metal Glazed Fire Doors & Windows (DSR 2014 & 2016)
Full-Vision Fire Rated Steel Doors with Clear Wired & Fire Protective Glass
Architectural metal glazed fire doors and window partitions offering maximum daylight and transparency while guaranteeing 120-minute furnace thermal and smoke protection.
Construction & Material Specifications
Fully compliant with IS:3614 Part 2 & BS:476 Part 22. Fabricated with mechanical lock seams and internal reinforcements.
Frame & Shutter Engineering IS:3614
Double rebate profile 143 x 57 mm, 35 x 60 mm, and 60 x 60 mm manufactured from 16 gauge galvanized steel profile, 1.4 mm bending radius, supplied assembled.
46 mm & 60 mm thickness made of 60 mm thick vertical stiles on both sides, 110 mm bottom rail, and 60 mm top rail of GI sheet.
Perimeter fire-resistant structural rails with intumescent perimeter seals and ceramic glazing tape.
Clear Wired Glass / Clear Fire Glass (120 minutes rating) conforming to BS 476: Part 20 with fire-resistant silicone sealant & steel beading moulding.
Stainless steel architectural pivot hinges / butt hinges, panic push bar, hydraulic closer, and drop-down acoustic seal.
Key Features & Furnace Test Criteria CSIR-CBRI
- ✓Frame: 16 gauge galvanized steel tubular profiles (143x57 mm, 35x60 mm, 60x60 mm)
- ✓Shutter: 60 mm stiles, 110 mm bottom kick-rail, 60 mm top rail in 16 gauge GI
- ✓Glazing: Clear Wired or Clear Multi-layer Fire Resistant Glass up to 120 minutes
- ✓Beading: 20x20 mm tubular steel beading with fire-resistant silicone sealant
- ✓Stainless steel fire painted windows and glazed screens also available
- ✓Complies with: CPWD DSR 2014 & DSR 2016 Schedule of Rates
Recommended Project Applications & Egress Locations

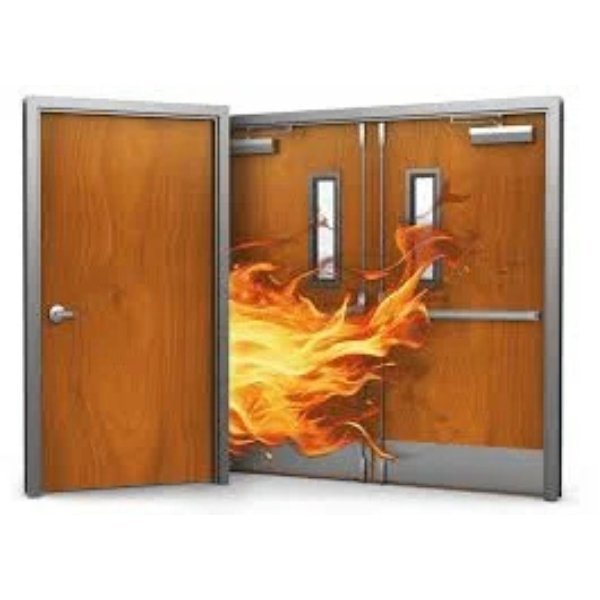

Complementary Door Systems & Hardware
Need Custom Dimensions or Architect Shop Drawings?
Our New Delhi drafting desk prepares shop drawings, frame anchoring details, and BOQ schedules within 24 hours.
